ZYE Horizontal Residue Spiral & ZDE Vertical Residue Spiral

ZYE Horizontal Residue Spiral & ZDE Vertical Residue Spiral

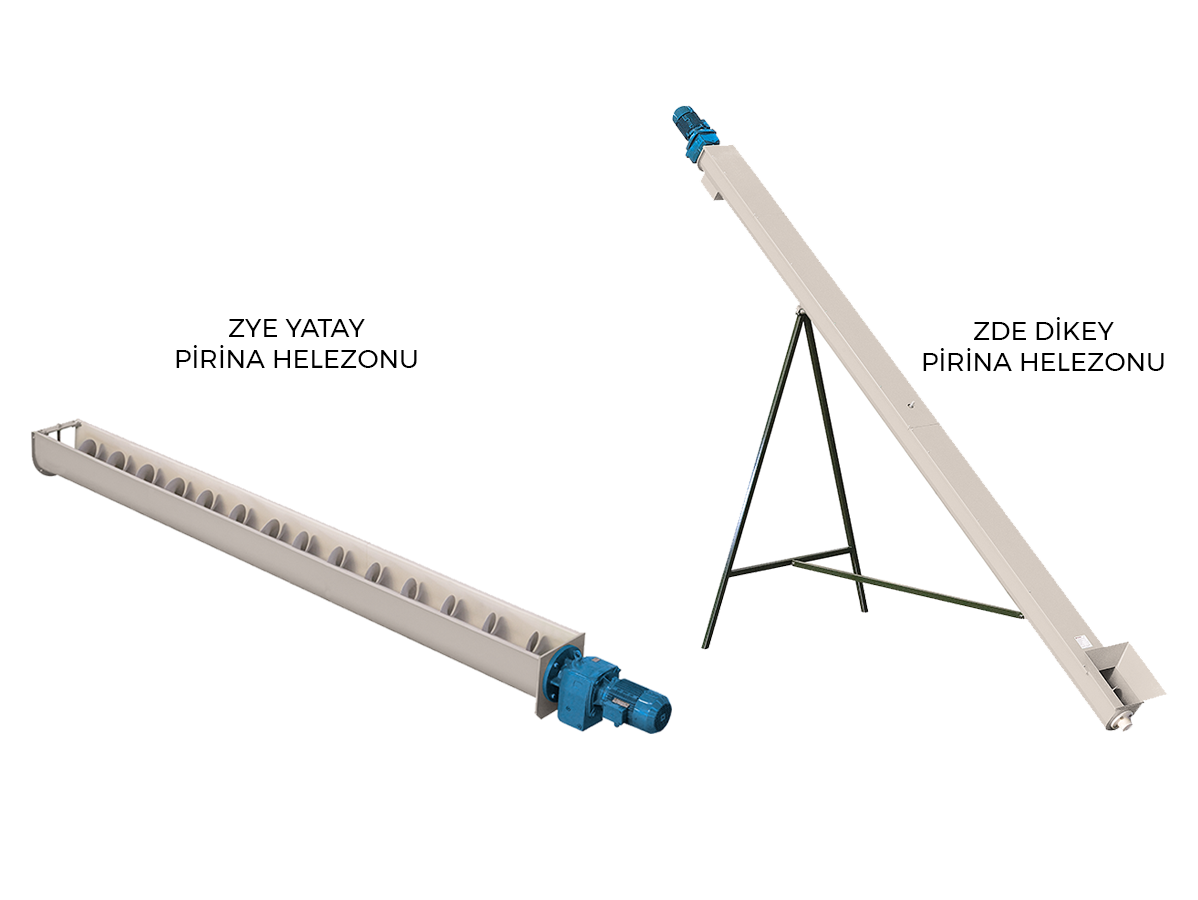

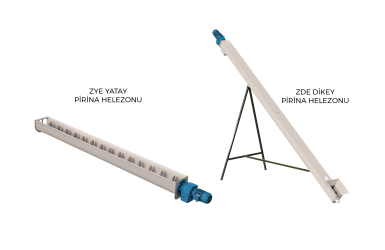

ZYE HORIZONTAL RESIDUE SPIRAL

  • The horizontal residue spiral is used to convey the residues coming from the decanter to the vertical residue spiral. The body is made of steel St 37 and the spiral is produced out of stainless steel AISI 304.

ZDE VERTICAL RESIDUE SPIRAL

The vertical residue spiral is used to dispose of the residues coming from the decanter out of the plant. The length of the vertical residue spiral varies depending on the capacity of the olive oil plant.



Technicial Specifications

ZYE Horizontal Residue Spiral & ZDE Vertical Residue Spiral

  ZDE Horizontal Residue Spiral ZDE Vertical Residue Spiral
Capacity 4.000 kg/h 4.000 kg/h
Body Material ST 37 Steel ST 37 Steel
Helix Material AISI 304 Stainless Steel AISI 304 Stainless Steel
Engine Power 1.1 kW 1.1 kW
Conveyance Speed 9 m/min 14 m/min
Weight 164 kg 220 kg
