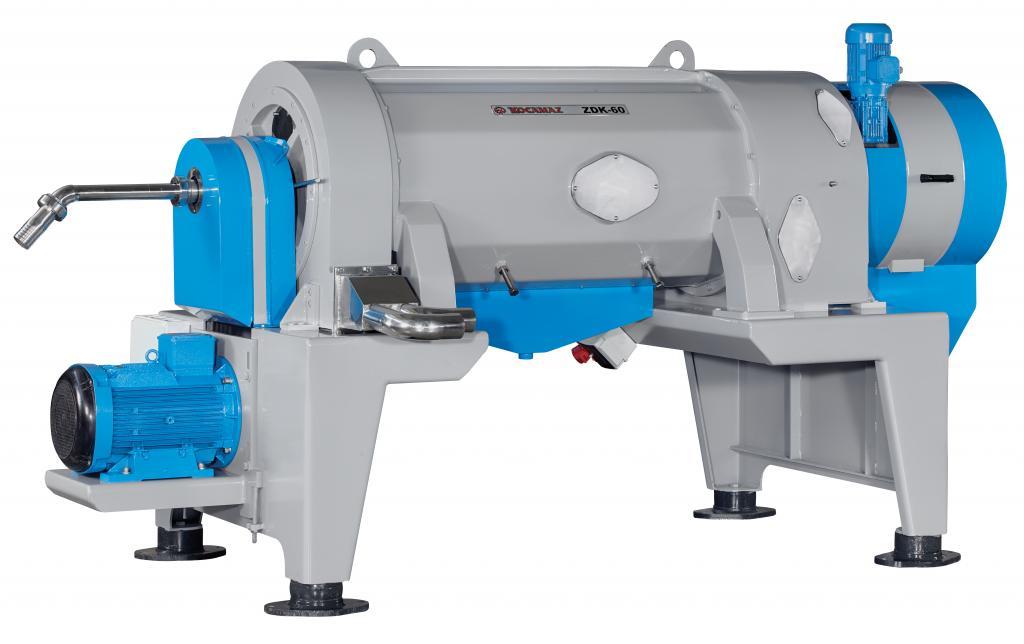

ZDK-80 and ZDK-60 Decanter

Decanter is used to decompose the residue, water and the olive oil on based of respective specific gravities as a result of the centrifuge forces by pressing the paste in the tank at high speeds. A peeling off system was developed in the front side in order to prevent the accumulation of the residue on surfaces once exited from the drum. Main chassis of decanter drum is made of steel St 37. Each surfaces of decanter became in contact with the olive paste is produced out of stainless steel AISI 304 conforming to the food regulations. Decanter was designed to be operable at two and three phases. The residue, wastewater and the oil are extracted from decanter at three phased systems and the residue & oil from decanter at double phased systems (ecologic systems).

Technicial Specifications

ZDK-80 and ZDK-60 Decanter

  ZDK 60 ZDK 80
Ecologic Features 1.920 - 2.200 kg/h 2.650 - 3.050  kg/h
Three Phased Capacity 2.073 - 2.376  kg/h 2.850 - 3.280  kg/h
Drum Diameter 470 mm 470 mm
Drum Length 1.670 mm 2.080 mm
Engine Power 22 kW 30 kW
Max. Running Speed 3.000 rpm 3.000 rpm
Dimensions (W x L x H) 1.620 x 3.390 x 1.800 mm

1.620 x 3.800 x 1.800 mm

Weight 2.073 kg 3.150 kg
